A patio door is a glass door, half of which is fixed in place. The
other half of the sliding glass door slides open over the fixed
portion. It is a source of natural light and a great way to access
your porch, deck, back yard or pool area.
There are many options to consider when choosing replacement patio
doors. The size of your wall area and how much natural light you
want to let in will help you determine the best size for your
sliding glass door. Standard patio doors are 6 feet, 8 inches tall.
Width size varies depending on whether the patio door is a two- or
three-panel configuration.

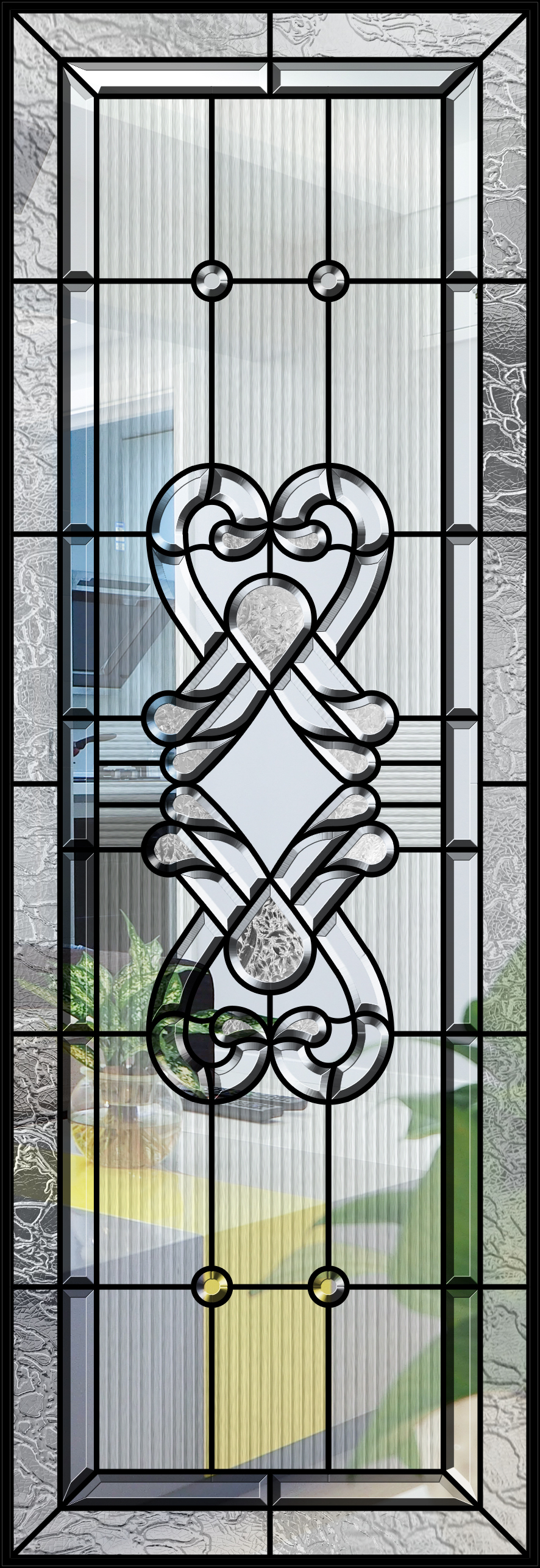

approve, then the glass selection is made and the art glass panel
is fabricated by our skilled craftsmen.
| Thickness | 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm |
| Color | Clear, bronze, grey, green, blue |
| Size | Min. 200x300mm, Max.2440mmx8000mm, custom sizes |
| Deep proessing | Laminated, insulated, acid etched, printed |
| Applications | Windows, doors, curtain wall, balcony, railling, table top |
| Certificate | CE, ISO, CCC, BS6202 |
| Packing | Exportation wood box |
| Delivery time | 7-15 days |
Clean Cut: Clean cut glass has a raw edge, is sharp, and may have small chips
on the edges.
Seamed: Seaming produces a sanded edge that is not sharp, has the look of a
natural cut, and may have small chips on edge.
Pencil Ground Edge: A machined edge with a smooth, rounded profile. The ground edge has
a sanded, nearly white appearance.
Pencil Polished Edge: A machined edge with a polished, rounded profile. The polished edge
has a similar appearance to the face of the glass.
Flat Ground Edge: A machined edge with a smooth, flat, and angular ground edge. The
ground edge has a sanded, nearly white appearance.
Flat Polished Edge: A machined edge with a polished, flat, and angular profile. The
polished edge has a similar appearance to the face of the glass.
Beveled Pencil Edge: Beveled edges are specified by width (½” – 1 ½”) and are created
through a grinding and polishing process. The edge is ground to a
pencil profile.
Beveled Pencil Polish: Beveled edges are specified by width (½” – 1 ½”) and are created
through a grinding and polishing process. The edge is ground and
polished to a pencil profile.
| safety | When broken, it spits into tiny harmless pieces. |
| Strong intensity | heat-strengthened glass is approximately twice as strong as
annealed glass of thesame |
| Application | Places where safety glass is required by laws and
regulations.Windows or other areas in a building.Windows of motor
vehicles, boats and ships. |
| Specification | our clear tempered glass Can be produced according to your request. |
| technical | CCC , ICGG ,IGMA |
A beveled edge is found on both glass tops, and mirrors hanging on
walls with or without frames. Normally when found on a glass top,
there is not full support underneath the glass, so the bevel can be
seen. Examples being glass pedestals, or coffee tables with the
center open.
The glass is sent through a beveling machine with a number of
wheels again ranging in grit, getting finer towards the end. And
lastly the glass encounters felt wheels along with cerium oxide to
polish the bevel back to clear.
Bevels create a very beautiful traditional look that can really
bring out the beauty of the glass.
